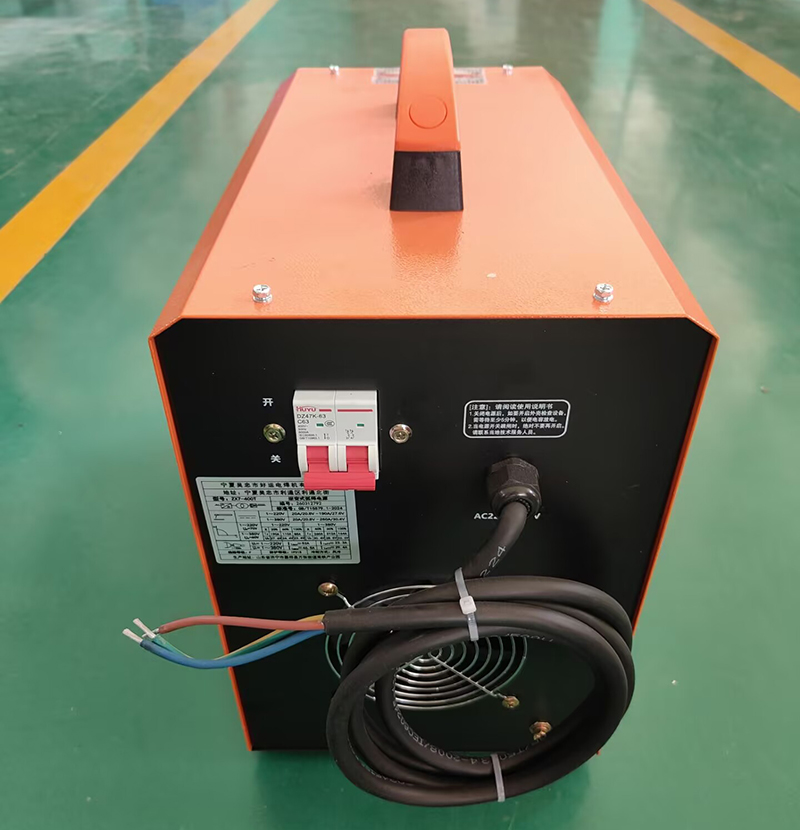

Inverter Manual Arc Welder ZX7-400

In high-volume fabrication environments and heavy industrial manufacturing, Welding Equipment is expected to perform reliably for extended periods, often at high output settings, with minimal interruption. The ZX7-400 inverter manual Arc Welding Machine is engineered specifically for these demanding conditions, delivering 400 amps of powerful, stable welding output with the durability and thermal management required for sustained heavy-load operation. This is a machine built for production schedules that cannot afford downtime—a workhorse that maintains consistent performance shift after shift, on the toughest fabrication and maintenance tasks.

Single-Tube IGBT Inverter Technology – Efficient Power for Heavy Loads

The ZX7-400 utilizes advanced single-tube IGBT inverter technology that provides highly efficient power conversion with minimal energy loss and reduced heat generation—critical attributes for a machine that will operate at high output levels for extended periods. Unlike older transformer-based welders that waste significant energy as heat and require massive, heavy components, the IGBT design is compact, efficient, and responsive. The advanced semiconductor switching delivers fast response to changing welding conditions while maintaining exceptional stability even when input power quality is less than ideal. For production environments where welding quality consistency is essential, the IGBT core provides the foundation for reliable, repeatable performance that meets the most demanding quality standards.

PWM Closed-Loop Control – Unwavering Current Stability

The ZX7-400 is equipped with a professional PWM (Pulse Width Modulation) digital control system with closed-loop feedback that provides an exceptional level of current regulation accuracy. This system continuously monitors output current and makes instantaneous adjustments to maintain the preset amperage with precision, regardless of variations in input voltage or thermal conditions within the machine. The result is an arc that remains stable and predictable throughout even the longest welding sessions, with consistent penetration and bead characteristics that would be impossible to achieve with less precise control systems. This stability is particularly valuable when welding critical components where weld quality must meet rigorous inspection standards and when performing multi-pass welds where consistency between passes is essential for overall joint integrity.

High-Duty-Cycle Design for Uninterrupted Production

The ZX7-400 is designed with a high-load duty cycle that enables continuous welding operations in high-intensity industrial environments. While many welding machines must be frequently stopped to cool down—causing costly interruptions to production workflows—this model's optimized high-efficiency cooling structure and well-designed power load management allow sustained operation at rated output. The efficient thermal design keeps internal components within safe operating temperature ranges even during extended high-amperage welding sessions, preventing the performance degradation and premature component failure that plague less robust machines. For fabrication operations where welding is a bottleneck, this continuous capability translates directly to increased production throughput and improved on-time delivery performance.

Three-Proof Protection for Demanding Industrial Conditions

Industrial fabrication environments present a range of threats to welding equipment: airborne dust and particulate matter from grinding and cutting operations, humidity from seasonal changes or insufficient climate control, and corrosive fumes from welding and other manufacturing processes. The ZX7-400 addresses these challenges with comprehensive three-proof internal protection—dustproof, moisture-proof, and corrosion-resistant treatments applied to all critical components. Circuit boards are coated with specialized insulating compounds, power modules are encapsulated to prevent contamination, and the internal layout is designed to minimize the entry of foreign material. This protection ensures reliable operation in the challenging conditions typical of heavy fabrication shops, reducing the frequency of maintenance interventions and extending the service life of critical components.

Universal Electrode Compatibility for Production Flexibility

The ZX7-400 offers full compatibility with all common welding electrode types, providing production flexibility that is valuable in job shops and fabrication facilities that handle diverse project requirements. The machine delivers stable, consistent performance with acid electrodes for general-purpose welding, alkaline electrodes for demanding structural applications, and specialized rods such as J507, J508, and stainless steel electrodes for specific material requirements. This comprehensive electrode adaptability allows a single machine to support a wide range of production tasks, from carbon steel structural components to high-strength alloy fabrications and stainless steel applications. The ability to switch between electrode types without changing equipment reduces setup time and improves overall production efficiency.

Optimized Arc Characteristics for Quality and Productivity

The precise current regulation and stable output of the ZX7-400 result in arc characteristics that minimize spatter and produce clean, well-formed weld beads. The stable arc reduces the amount of post-weld cleaning required, lowering finishing costs and accelerating the flow of work through the shop. The consistent penetration and bead profile also reduce the likelihood of weld defects that would require rework, improving overall production yield and reducing material waste. For high-volume production environments, these improvements in quality and efficiency can have a significant impact on profitability.

Adaptable to All Welding Positions

The ZX7-400's stable arc performance and consistent current delivery make it effective in all welding positions, enabling fabrication of complex assemblies without the need to reposition workpieces for optimal welding orientation. The machine's reliability in vertical and overhead welding is particularly valuable for structural fabrication and large assembly work where workpiece repositioning is impractical or impossible.

Built for Long-Term Industrial Service

The ZX7-400 is constructed with the durability requirements of industrial manufacturing in mind. Heavy-duty internal components, robust external casing, and professional cooling system are all selected for extended service life under continuous operation. The modular design simplifies service and maintenance when required, while the robust engineering ensures that such interventions are needed less frequently than with lesser equipment.

Wide-Ranging Industrial Applications

The ZX7-400 is suitable for the full spectrum of industrial welding applications where reliability and continuous operation are essential. It is an ideal choice for factory batch production environments where consistent quality and high throughput are paramount. It performs equally well in outdoor engineering construction, providing the rugged performance needed in challenging field conditions. Mechanical maintenance and metal fabrication operations benefit from the machine's electrode versatility and stable arc characteristics.

A Foundation for Production Capability

For fabrication operations and manufacturing facilities that depend on welding as a core production process, the ZX7-400 represents a strategic investment in production capability. Its combination of high output, continuous-duty design, and professional control features ensures that it will remain a valuable production asset for many years, supporting the welding requirements of a growing and evolving business.

The ZX7-400 delivers the power, durability, and production capability that industrial manufacturers require for demanding welding applications. Its robust construction, precise control, and high-duty-cycle performance make it an essential component of a productive welding operation.

Technical Parameters of ZX7-400 Inverter Arc Welding Power Supply

Input Power Supply:AC380V ±15%

Rated Input Capacity:9 kVA

Rated Input Current:14.7 A

No-load Voltage:67 V

Duty Cycle (at 40°C):40%

Current Adjustment Range:20 – 260 A

Applicable Electrode Diameter:1.6 – 4.0 mm

Efficiency:86.4%

Insulation Class:F

Overall Dimension (L×W×H):410 × 210 × 355 mm

Weight:7.6 kg
