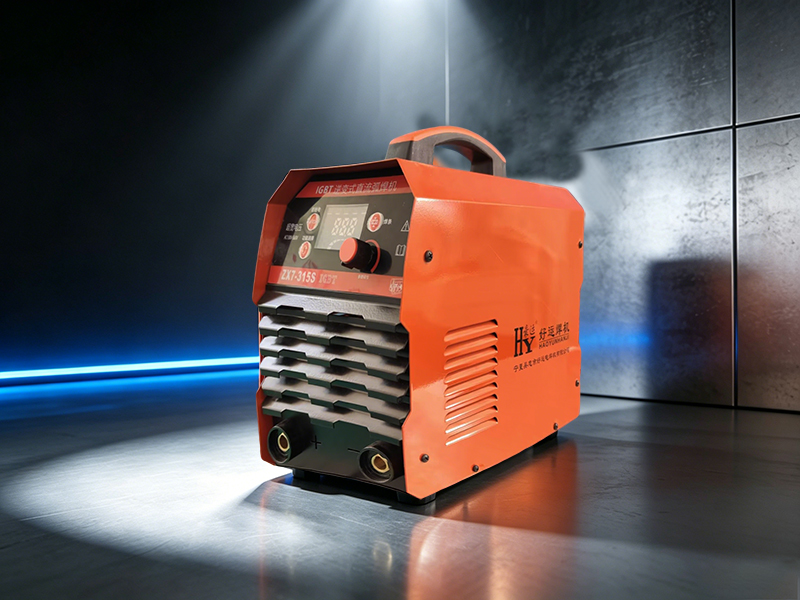

Inverter Manual Arc Welder ZX7-315

For fabrication shops and maintenance operations that handle a diverse range of welding tasks, versatility is just as important as power. The ZX7-315 inverter manual Arc Welding Machine delivers 315 amps of reliable welding output in a compact, efficiently designed package that adapts to the full spectrum of workshop and field applications. From precision work on thin-gauge materials to heavy fabrication on structural steel, this welder provides the stable arc characteristics, consistent performance, and professional features that modern metalworking operations require—all without occupying excessive floor space or demanding a significant capital investment.

Advanced Single-Tube IGBT Inverter – The Heart of Modern Welding

The ZX7-315 is powered by advanced single-tube IGBT inverter technology that represents a significant evolution from traditional transformer-based welding machines. This semiconductor-based power conversion system is dramatically more efficient than older technologies, converting incoming electrical power to welding current with minimal energy loss and substantially reduced heat generation. The compact nature of the IGBT design allows the machine to be significantly smaller and lighter than conventional welders of comparable output, making it practical to move between workstations or transport to off-site locations. The rapid switching capability of the IGBT also provides faster response to changing welding conditions, delivering a smoother, more controllable arc that is essential for achieving professional-quality welds.

PWM Precision Control – Consistent Quality Across All Applications

The ZX7-315 incorporates a sophisticated PWM (Pulse Width Modulation) digital control system that provides exceptional regulation of welding current throughout the entire operating range. In traditional welding machines, output current can drift as internal components heat up or as input voltage fluctuates—a problem that leads to inconsistent weld quality and frustrating rework. The PWM system in the ZX7-315 continuously monitors the welding current and makes precise adjustments thousands of times per second, maintaining the exact preset amperage with remarkable accuracy. This precision ensures that the welding arc remains stable and predictable, whether the operator is performing delicate low-current welding on thin materials or pushing high amperage for deep penetration on thick sections. The consistent arc characteristics also help minimize spatter, reduce cleaning time, and produce weld beads that are uniformly smooth and well-shaped.

Built for Real-World Duty Cycles

The ZX7-315 is designed with a practical duty cycle that supports continuous welding operations in typical industrial and workshop environments. Unlike low-cost machines that are only capable of intermittent, short-duration use before requiring extended cooling periods, this welder is engineered to match the actual working rhythms of busy fabrication shops. The efficient cooling system and well-designed power load management ensure that the machine can sustain productive welding sessions without performance degradation or overheating-related shutdowns. This capability translates directly to improved workflow efficiency, as operators can focus on completing welding tasks rather than waiting for equipment to cool down.

Three-Proof Protection for Diverse Work Environments

Fabrication workshops and field jobsites present a variety of environmental challenges that can compromise unprotected Welding Equipment. The ZX7-315 features comprehensive three-proof internal protection—dustproof, moisture-proof, and corrosion-resistant treatments applied to all critical internal components. Circuit boards, power modules, and wiring assemblies are encapsulated with special protective coatings that shield against dust accumulation, humidity, and corrosive atmospheres. This robust protection ensures reliable operation in environments ranging from dusty fabrication shops to humid outdoor construction sites, reducing the risk of short circuits, component degradation, and premature failure. The enhanced durability translates to lower maintenance costs and reduced downtime over the machine's service life.

Universal Electrode Compatibility for Maximum Versatility

One of the standout features of the ZX7-315 is its exceptional compatibility with the full range of welding electrode types used in modern metalworking. The machine delivers stable, consistent performance with acid electrodes for general-purpose welding, alkaline electrodes for demanding structural applications, and specialized rods such as J507, J508, and stainless steel electrodes for specific material requirements. This comprehensive electrode adaptability allows a single machine to handle the diverse welding needs of a typical fabrication shop—from carbon steel structural components to stainless steel sanitary piping and high-strength alloy fabrications. The ability to switch between electrode types without changing equipment improves workflow efficiency and reduces the capital investment required to maintain multiple specialized welding machines.

Adaptable to Various Welding Positions

The stable arc characteristics and precise current control of the ZX7-315 make it effective in all welding positions—flat, horizontal, vertical, and overhead. This all-position capability is particularly valuable in fabrication environments where workpieces cannot always be repositioned for optimal welding orientation. The machine's consistent arc performance ensures that operators can achieve reliable, high-quality welds regardless of the position, contributing to the overall quality and integrity of the finished products.

Wide Application Across Multiple Industries

The ZX7-315's combination of performance, versatility, and reliability makes it suitable for a broad range of industrial applications. It is an excellent choice for factory batch production, where consistent weld quality and reliable machine performance are essential for meeting production targets. It performs equally well in outdoor engineering construction, where portability and environmental durability are critical considerations. Maintenance operations benefit from the machine's electrode versatility and stable arc characteristics, while metal fabrication shops value its ability to handle diverse materials and project requirements.

Designed for Operator Convenience

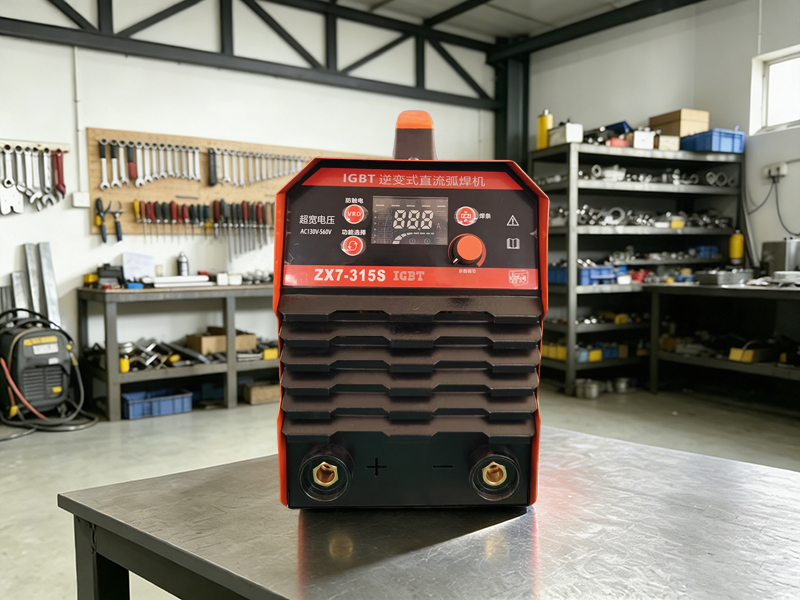

The ZX7-315 features an intuitive control panel that simplifies parameter adjustment and reduces the learning curve for operators of varying experience levels. Clear, accessible controls allow quick setting of welding current based on electrode diameter and material thickness, minimizing setup time and enabling operators to focus on producing quality welds. The machine's compact footprint conserves valuable workshop space, while its manageable weight allows easy relocation within the shop or transport to off-site jobs.

Cost-Effective Professional Performance

For fabrication businesses operating with careful attention to equipment costs and return on investment, the ZX7-315 offers professional welding performance at a practical price point. Its combination of advanced inverter technology, precise PWM control, and robust construction provides capabilities that historically were only available on significantly more expensive machines. The durability and low maintenance requirements further enhance the long-term value proposition, making this welder a smart investment for growing fabrication operations.

The ZX7-315 delivers the balanced combination of performance, versatility, and value that modern fabrication shops need to remain competitive. Its advanced technology, practical features, and durable construction make it a reliable partner for a wide range of welding applications.

Technical Parameters of ZX7-315 Inverter Arc Welding Power Supply

Input Power Supply :AC220V/380V ±15%

Rated Input Capacity (220V / 380V) :11 kVA / 21 kVA

Rated Input Current (220V / 380V) :50.8 A / 32.3 A

No-load Voltage (220V / 380V) :70 V / 60 V

Duty Cycle :30%

Current Adjustment Range :20 – 190 A

Efficiency (220V / 380V): 83.6% / 85.5%

Insulation Class: F

Enclosure Protection Rating: IP21S

Overall Dimension (L×W×H) :410 × 210 × 355 mm

Weight: 7.1 kg
