Inverter CO₂ Dual Pulse Aluminum Welding Machine NBC-350MC

The NBC-350MC Inverter CO₂ Dual Pulse Aluminum Welding Machine is an upgraded industrial multi-functional welding machine specially optimized for aluminum welding and high-precision metal processing. Adopting advanced SiC silicon carbide module technology and dual pulse welding algorithm, this professional Gas Shielded Welder integrates multiple welding modes and intelligent control functions. It features a compact body, high power output, ultra-Low Spatter Welding, and full-load continuous working capability. With diversified welding functions, simple operation, and excellent environmental adaptability, it is widely applicable for aluminum alloy processing, carbon steel welding, stainless steel fabrication, and industrial standardized production, serving as an efficient and high-quality welding solution for modern manufacturing industries.

Equipped with advanced SiC silicon carbide module technology, the NBC-350MC achieves a perfect balance between miniaturized structure and high power performance. Unlike traditional IGBT module welding machines with large volume and limited power density, the silicon carbide power module features higher thermal conductivity, faster response speed, and lower power consumption. This cutting-edge technology greatly improves the equipment's power density, delivering strong high-power output while maintaining a small and lightweight body structure. The optimized internal module layout reduces overall equipment size and effectively lowers heat generation during high-load operation. It delivers more powerful and stable working performance than traditional welding machines of the same class, achieving energy-saving, high-efficiency, and compact industrial welding.

This welding machine supports three core welding functions, including manual arc welding, conventional gas shielded welding, and pulse gas shielded welding, enabling one machine for multiple purposes. The flexible switching of multiple working modes fully meets diverse processing demands of different materials and welding processes. The manual welding mode adapts to daily maintenance and conventional steel welding; the standard gas shielded welding mode is suitable for conventional batch processing of carbon steel and low alloy steel; the professional pulse gas shielded welding mode is specially tailored for high-precision welding of aluminum alloy and stainless steel. The multi-functional design avoids repeated equipment procurement, greatly improves equipment utilization, and perfectly adapts to complex and diversified industrial welding scenarios.

Featuring an intelligent unified adjustment design, the equipment achieves automatic current and voltage matching, greatly simplifying daily welding operation. Traditional gas shielded welding requires manual debugging and repeated calibration of current and voltage parameters, which is complicated and prone to mismatched parameters that affect welding quality. The NBC-350MC's one-key unified adjustment system intelligently matches the optimal current and voltage ratio according to the set welding current and workpiece specifications. Operators do not need professional debugging experience and can quickly complete parameter setting with simple operation. This user-friendly intelligent design effectively reduces operation difficulty, improves working efficiency, and ensures stable and consistent welding parameters for batch production.

Built with a professional pulse welding function, this machine enables nearly zero-spatter welding and excellent weld formation. The dual pulse technology precisely controls molten pool fluctuation and droplet transfer frequency during the welding process, effectively restraining molten metal splashing and arc turbulence. The whole welding process is stable and smooth with almost no welding spatter. The weld seam is flat, uniform, and delicate with beautiful forming texture, free from pores or cracks. This greatly reduces post-weld polishing, grinding, and repairing procedures, improves workpiece surface quality, and fully meets the high-standard appearance and precision requirements of aluminum alloy and high-end metal workpieces.

The NBC-350MC reserves a customizable robot communication interface, which can be upgraded and installed according to users' actual production demands to achieve seamless integration with automatic welding robots. The upgraded automatic matching function enables stable signal transmission and precise synchronous control between the welding machine and robotic equipment. It can adapt to automated production lines, unmanned batch welding, and intelligent processing scenarios, effectively improving production automation levels and welding consistency. This customizable expandability makes the equipment suitable for both manual flexible operation and large-scale intelligent automated production, offering extremely high industrial application value.

This industrial welder has wide material adaptability and is suitable for welding various common metal materials. It can stably and efficiently complete high-quality welding of carbon steel, low alloy steel, stainless steel, and other metal workpieces, covering conventional industrial metal processing demands. Whether for thin plate fine welding or thick plate heavy-duty welding, the equipment maintains stable output and excellent formation effect. Its powerful universal welding performance meets the diversified material processing requirements of machinery manufacturing, steel structure engineering, aluminum alloy processing, and other industries.

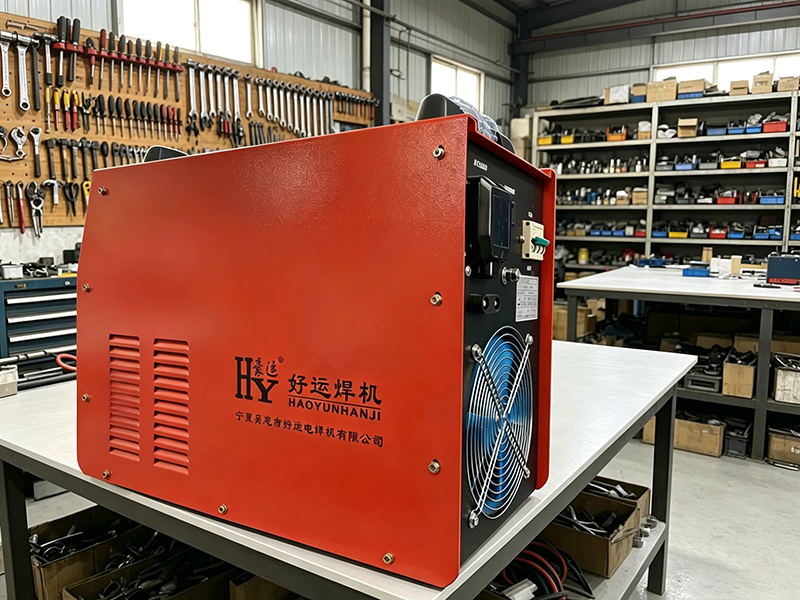

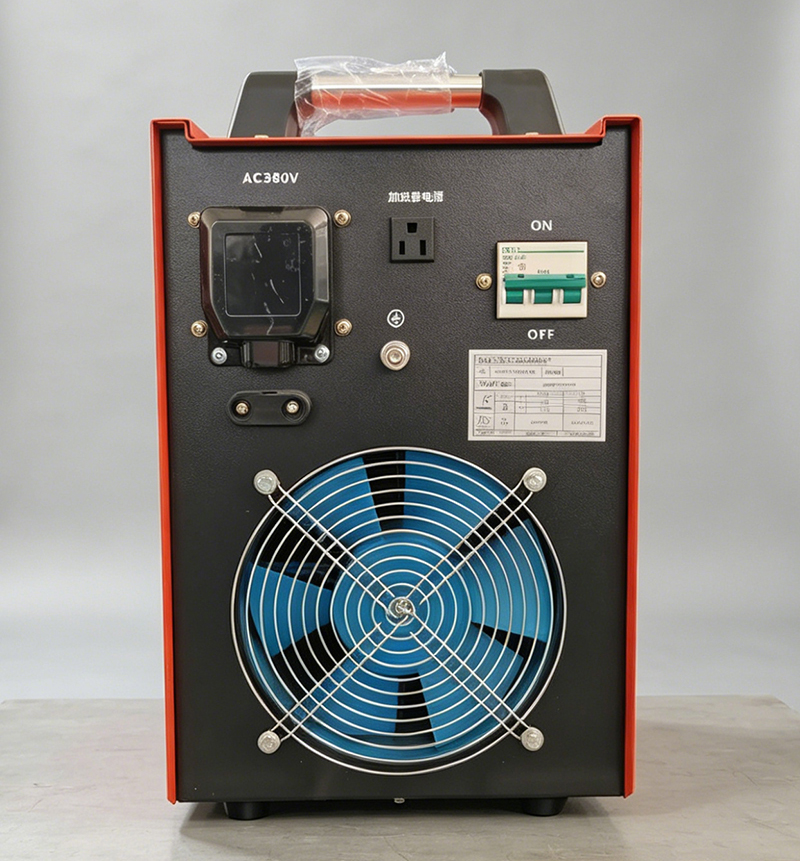

Adopting an independent air duct design and equipped with a high-speed cooling fan, the machine achieves excellent waterproof, dustproof, and heat dissipation performance. The independent air duct structure effectively isolates external dust, water mist, and debris from entering the internal circuit and core components, providing reliable waterproof and dustproof protection. The matched high-speed professional fan accelerates internal air circulation, quickly dissipates operating heat, and ensures long-term stable thermal management of the equipment. Meanwhile, the optimized fan operation mode reduces dust accumulation inside the fan, effectively prolongs the service life of the heat dissipation system and the whole machine, and improves the equipment's durability and environmental adaptability in harsh workshop environments.

Technical Parameters of NBC-350MC Inverter CO₂ Dual Pulse Aluminum Welding Machine

Input Voltage:AC380V ±15%

Rated Input Capacity:15.8 kVA

Rated Input Current:24 A

No-load Voltage:65 V

Current Adjustment Range:30 – 350 A

Applicable Wire Diameter:0.8 – 1.2 mm

Duty Cycle:100%

Efficiency:87%

Insulation Class:F

Enclosure Protection Rating:IP21S

Overall Dimension (L×W×H):507 × 276 × 457 mm

Weight:24.5 kg
