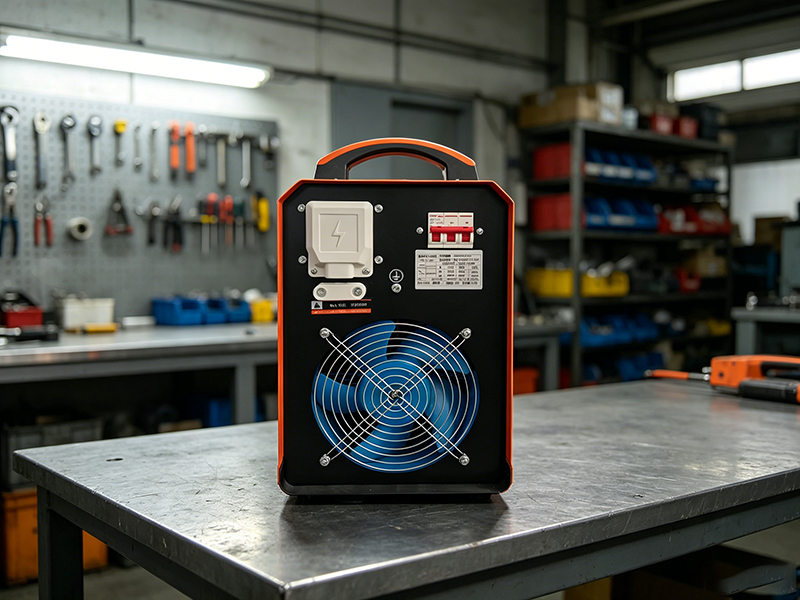

Inverter Manual Arc Welding MachineZX7-500

In the mining industry and heavy construction sectors, Welding Equipment operates under conditions that would rapidly destroy conventional machines. Extreme dust, high humidity, corrosive atmospheres, vibration, and unstable power supplies are part of the daily operating environment. The ZX7-500 mining-grade inverter manual arc welding machine is engineered specifically for these harsh realities, delivering 500 amps of heavy-duty welding power with a 60% duty cycle, wide-range voltage adaptability, and professional protection systems that ensure reliable performance where other machines simply cannot survive.

Engineered for Underground and Mining Environments

The ZX7-500 is not a repurposed general-purpose welder—it is a dedicated industrial machine designed from the ground up for the unique demands of underground coal mines, open-pit mining operations, and heavy steel structure engineering. Every component, from the power module layout to the internal cooling design, has been selected to withstand the extreme conditions typical of these environments. The machine supports AC380V/660V and 660V/1140V dual-voltage wide-range adaptation, compatible with the specialized power distribution systems found in mining operations. No additional voltage converters or transformers are required, simplifying site wiring and reducing auxiliary equipment costs.

Industrial-Grade IGBT Inverter with Closed-Loop Control

The ZX7-500 utilizes an advanced IGBT inverter architecture with a professional closed-loop feedback control system that provides ultra-stable constant current output throughout the entire welding process. Unlike standard single-tube IGBT designs used in consumer-grade welders, this industrial-grade module is matched with high-precision signal feedback components that track output current in real time and make instantaneous adjustments to maintain exact parameters. This eliminates current fluctuations and output deviations caused by complex on-site power interference, ensuring continuous, steady current supply even when multiple large machines are operating simultaneously on the same power grid and causing voltage sags.

Exceptional Duty Cycle for Continuous Heavy Load Work

With a 60% duty cycle—double the rating of typical portable welders—the ZX7-500 is designed for uninterrupted heavy-load continuous welding. This means the machine can sustain high-current output for extended periods without triggering thermal overload protection or restricting output. For applications such as equipment repair in continuous mining operations, structural fabrication, and heavy component splicing, this capability eliminates the productivity-killing pauses required by lesser machines. The high duty cycle is supported by an efficient cooling system that maintains optimal operating temperatures even during the most demanding welding sessions.

Hot Start and Arc Force Control – Professional Adjustment for Superior Welds

The ZX7-500 features independently adjustable hot start current and arc force controls, giving experienced operators fine-tuned command over arc initiation and weld pool dynamics. The hot start function provides an initial current boost for instant, reliable arc ignition, preventing electrode sticking and ensuring a clean start even on cold or slightly contaminated workpieces. The arc force control adjusts the stirring effect of the molten pool, allowing operators to achieve the optimal balance of penetration and bead shaping for different materials and electrode types. These professional adjustments make the ZX7-500 exceptionally capable for heavy plate welding, where proper arc characteristics are essential for achieving sound, defect-free welds.

Automatic Voltage Compensation – Stable Welds on Unstable Grids

Mining and industrial power supplies are notoriously unstable, with voltage frequently fluctuating due to the simultaneous operation of conveyors, crushers, hoists, and other large equipment. The ZX7-500 incorporates an intelligent automatic voltage compensation function that dynamically adjusts output arc energy to maintain stable welding conditions regardless of input voltage variations. This compensation ensures that the arc remains concentrated and stable, with uniform molten pool fluidity, extremely low spatter, and flat, neat bead appearance. By preventing welding defects such as porosity, incomplete fusion, and cracking, this feature reduces post-weld rework and ensures that critical mining and structural welds meet demanding quality standards.

Professional Three-Proof Protection for Harsh Environments

The ZX7-500's internal circuit boards, power modules, and wiring assemblies are treated with professional integrated three-proof protection—dustproof, moisture-proof, and anti-corrosion treatments. All core circuit boards are coated with thickened high-insulation anti-corrosion protective compound, and the internal air duct features an isolated dustproof structure that effectively resists coal dust accumulation, underground humid mist, and corrosive mine gas erosion. The reinforced internal construction also improves shock resistance and damage tolerance, maintaining stable performance and reducing failure rates in environments where vibration and impact are unavoidable.

Power-Saving Safety Design – Intelligent Standby Shutdown

The ZX7-500 includes an exclusive industrial power-saving safety feature that automatically cuts the main circuit power if the machine remains in standby mode for more than 5 seconds without arc striking. This intelligent standby shutdown serves two critical purposes: it significantly reduces idle power consumption, lowering overall energy costs for frequent intermittent mining welding work, and it improves electrical safety by eliminating the risk of electric leakage during inactive periods. In underground mining operations where electrical safety is paramount, this feature provides an important additional layer of protection for operators.

Comprehensive Material Welding Adaptability

With its high-power stable output, the ZX7-500 is suitable for welding a broad spectrum of industrial metals. It performs exceptionally on carbon steel, alloy steel, cast steel, stainless steel, pure copper, and copper alloy workpieces. This wide material compatibility covers the full range of mining equipment repair—heavy machinery components, conveyor structure splicing, pipeline welding, and metal structural reinforcement. The ability to weld multiple metal types with a single machine improves equipment utilization rates for mining enterprises and eliminates the need for multiple specialized welding units.

Built for the Long Haul

The ZX7-500 is constructed with the assumption that it will be used hard, in difficult conditions, for many years. The heavy-duty internal components, reinforced external housing, and professional cooling system are all selected for exceptional durability. The modular design facilitates service and maintenance when required, but the robust engineering ensures that such interventions are needed far less frequently than with lesser equipment. For mining operations and heavy industrial facilities, this reliability translates to lower total cost of ownership and reduced downtime.

The ZX7-500 represents the ultimate in heavy-duty manual arc welding capability for the most demanding industrial environments. Its combination of mining-grade durability, professional welding features, and wide-range voltage adaptability makes it the trusted choice for operations where welding quality and equipment reliability are absolutely critical.

Technical Parameters of ZX7-500 Inverter Manual Arc Welding Machine

Model: ZX7-500

Input Power Supply: AC380V/660V ±15%

Rated Input Capacity: 12.7 kVA

Rated Input Current (380V / 660V): 20.5 A / 12.7 A

No-load Voltage: 54 V

Duty Cycle: 60%

Current Adjustment Range: 20 – 330 A

Efficiency: 86%

Overall Dimension (L×W×H): 540 × 385 × 660 mm

Weight: 27.5 kg
